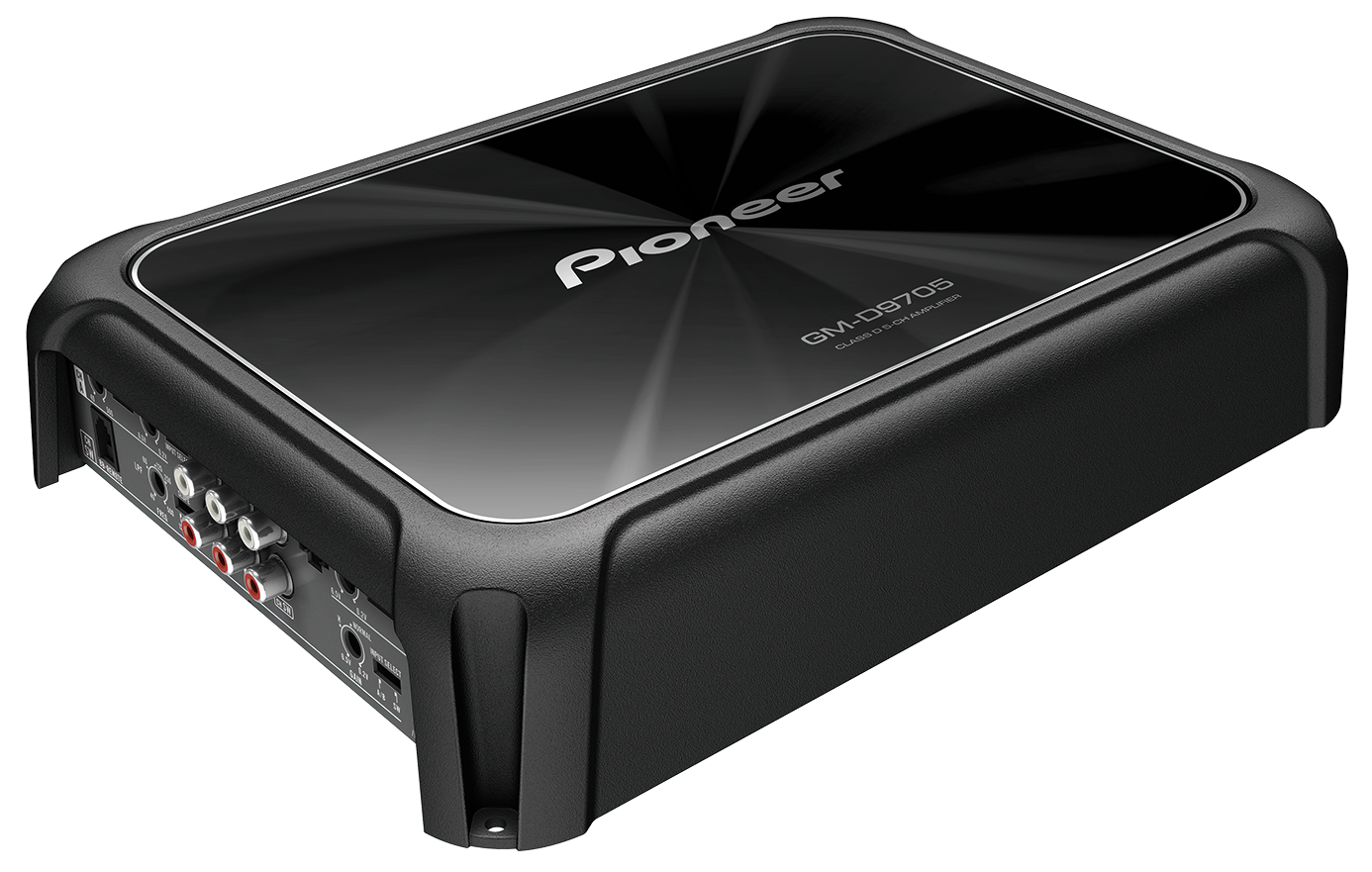

GM-D9705

GM-D9705

R 6,899.00 ZAR
R 6,899.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Class-D 5-Channel Amplifier with Wired Bass Boost Remote
  • Amplifier Class: Class-FD
  • No. of Channels5/3
  • Max power output: 150 W x 4 (A-/B-Ch.) / 700 W x 1 (Subwoofer Ch. ) (4Ω) 200 W x 4 (A-/B-Ch.) / 1,200 W x 1 (Subwoofer Ch. ) (2Ω) 400 W x 2 (A-/B-ch Bridgedable ) (4Ω Bridged)
  • RMS power output: 75 W x 4 (A-/B-Ch.) / 350 W x 1 (Subwoofer Ch. ) (4Ω) 100 W x 4 (A-/B-Ch.) / 600 W x 1 (Subwoofer Ch. ) (2Ω) 200 W x 2 (A-/B-ch Bridgedable ) (4Ω Bridged)
  • Frequency Response: 10 Hz to 50 kHz (A-/B-Ch.) 10 Hz to 500 Hz (Subwoofer Ch.)
  • Impedance: 2Ω to 8Ω
  • Total Harmonic Distortion(THD)<0.05% (A-/B-Ch.: 1 kHz) (Subwoofer Ch. : 100 Hz)
  • S/N Ratio>94 dB
  • Speaker Level Input
  • Automatic Signal Sensing and Turn-On
  • Crossover Type Variable: HPF/LPF
  • Crossover Frequency: 40 Hz to 500 Hz
  • Bass Boost Frequency: 50 Hz (Subwoofer-Ch)
  • Baas Boost Level: 0 dB to 18 dB (Subwoofer-Ch)
  • Bass Boost Remote(Subwoofer-Ch)
  • Dimensions: 302 mm x 60 mm x 215 mm
